Air Shower

Air Shower Systems Are Applied in a Variety of Ways

Air showers, when used as cleanroom entry systems, help prevent contamination as personnel enter the clean production space. A worker enters the entry door, the door closes, and multiple precisely located, adjustable nozzles blow high velocity streams of HEPA-filtered air onto the worker. This high-velocity air causes a flapping action on the worker’s clothing, which aids in the removal of contaminants from their cleanroom gear.

Add to quote

Description

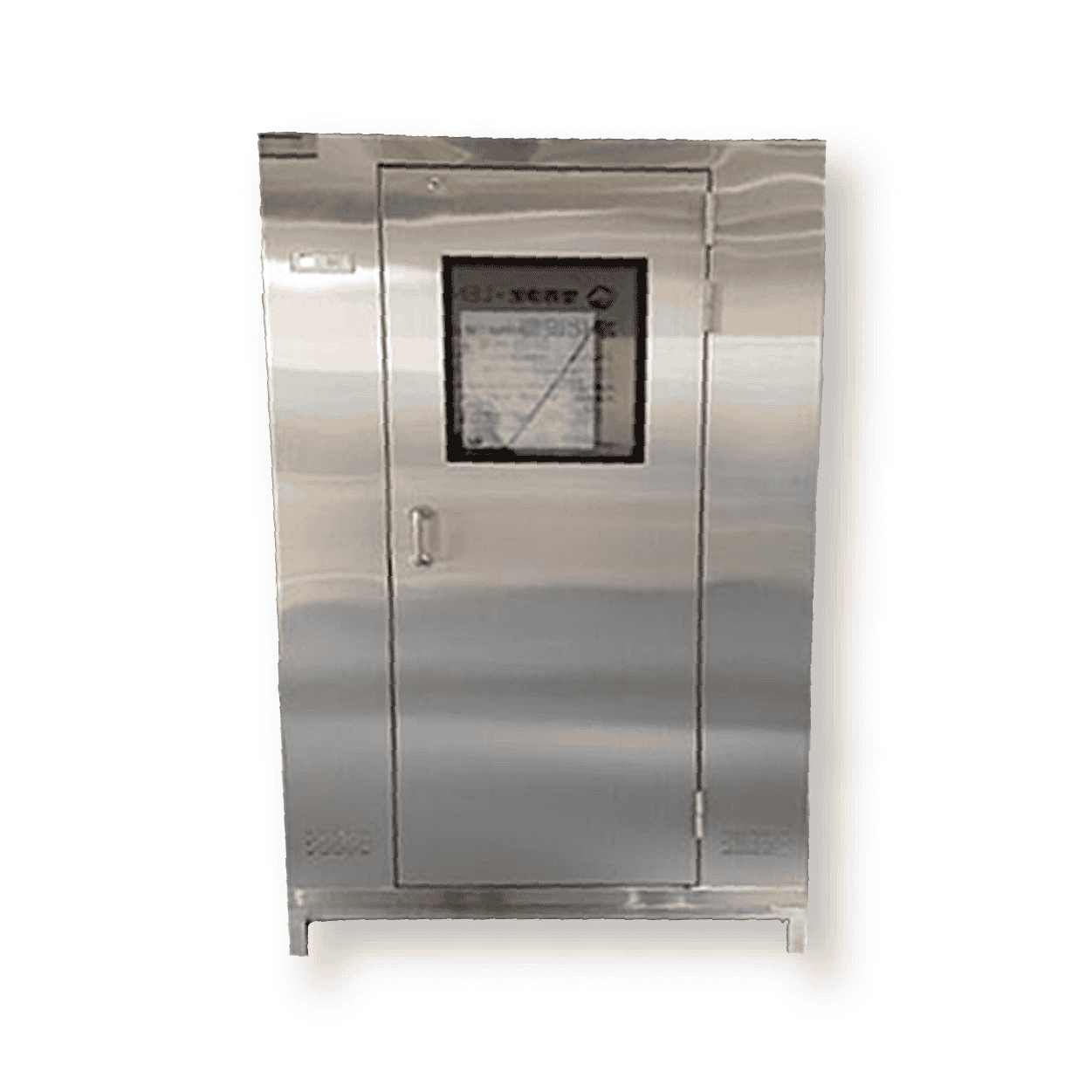

Air Shower

Our cleanroom air showers remove loose particles from persons and products prior to their entry into the cleanroom, minimising or eliminating product defects for enhanced yields.

To avoid contamination, cleanrooms must adhere to stringent regulatory criteria. While coveralls and other protective clothing are employed to keep outside contaminants out of a cleanroom, this is not always sufficient.

Contaminants are quickly transmitted by people and objects, and a spec of lint or debris can cause problems in certain cleanroom situations. As a result, cleanroom air showers have become important to the cleanliness of cleanrooms and other clean-critical environments.

Choosing the appropriate cleanroom entry system for your business is not always straightforward. Consider the following factors when determining the type of cleanroom air shower you require:

  • The air shower should be modular in design to facilitate configuration/reconfiguration, shipping, and installation.
  • The air shower’s outside shell should be made of stainless or painted steel.
  • The blower system must deliver large volumes of air at a high rate of speed in order to properly disinfect workers, equipment, and other surfaces.
  • Showers for cleanroom air should have a large number of air nozzles that are adjustable.
  • The unit should be equipped with a magnetic door interlock mechanism and the necessary controls.

More Details About Air Shower:

External Size W x D x H (mm): 1300 x 1000 x 1250, 1300 x 1250 x 2150, 1300 x 1500 x 2150
Internal Size W x D x H (mm): 800 x 920 x 2000, 800 x 1170 x 2000, 800 x 1420 x 2000
Air Shower Capacity: 1 person, 2 persons, 3 persons
Filter: 2 set, 2 set, 2 set
Fan Velocity: 2pcs, 2pcs, 2pcs
Nozzle: 12 pcs, 16 pcs, 18 pcs
Power: 1.52 kW, 1.52 kW, 1.52 kW

External Size W x D x H (mm): 1300 x 2000 x 2150, 1300 x 2500 x 2150, 1300 x 4000 x 1250
Internal Size W x D x H (mm): 800 x 1920 x 2000, 800 x 2420 x 2000, 800 x 3920 x 2000
Air Shower Capacity: 4 persons, 5 persons, 8 person
Filter: 4 set, 4 set, 6 set
Fan Velocity: 4 pcs, 4 pcs, 6 pcs
Nozzle: 24 pcs, 32 pcs, 54 pcs
Power: 3.04 kW, 3.04 kW, 4.6 kW

External Size W x D x H (mm): 1300 x 5000 x 2150, 1300 x 6000 x 2150, 1300 x 8000 x 2150, 1300 x 10000 x 2150
Internal Size W x D x H (mm): 800 x 4920 x 2000, 800 x 5920 x 2000, 800 x 7920 x 2000,
800 x 9920 x 2000
Air Shower Capacity: 10 persons, 12 persons, 16 persons, 20 persons
Filter: 6 set, 8 set, 10 set, 12 set
Fan Velocity: 6 pcs, 8 pcs, 10 pcs, 12 pcs
Nozzle: 66 pcs, 72 pcs, 90 pcs, 108 pcs
Power: 4.6 kW, 6.1 kW,  7.6 kW,  9.2 kW

MAIN MATERIAL: Cold rolled steel with electrostatic coating or stainless steel 304, 5mm double tempered glass, Automatic door closer

FILTER: Primary Filter – G4, Size: 595 x 295 x 25 mm, HEPA Filter – 99.99% @ 0.3 um, Size: 610 x 610 x 70 mm

NOZZLE: Stainless steel embedded type or 360 rotary type

CONTROL SYSTEM: Microcomputer control, Intelligent voice prompts, LED display blowing time (10-99s adjustable), Two doors electronic interlock. Optional: PLC control system, LCD touch screen interface, central control system

LIGHTING: LED embedded
