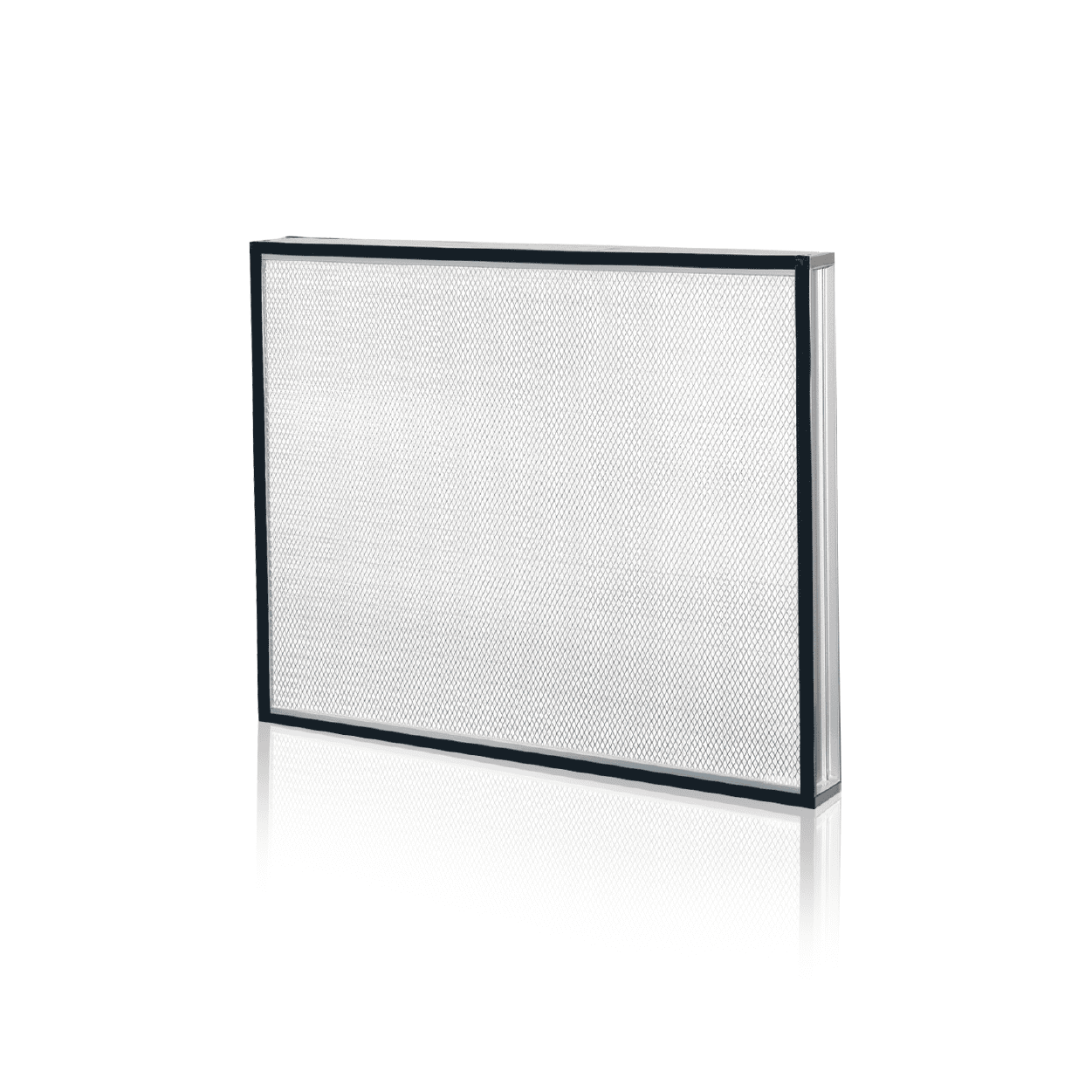

ULPA Filter M-UII-PAO

ULPA Filter M-UII-PAO

Product Highlight

Non-separator design, lower operational cost

Wide application area, compact design, space-saving

Ultra thin design, space-saving

Efficiency: 99.97%@0.3μm(H13), 99.99%@0.3μm(H14), 99.9995%@0.3μm(U15)(EN1822)

Product Description

Product Features:

Continuous Operating Temperature : Max. 80°C
Operating Relative Humidity : ≤100 (%RH)
Media Material : Ultrafine Fiberglass
Frame Material : Anodised Aluminium
Frame Thickness : 50mm, 70mm, 90mm, 110mm
Faceguard : Epoxy Powder Coated Steel Mesh
Efficiency : U15 (EN1822:2009)
Structure/Arrangement : Ultra-Slim and Compact Design
Separator Material : Hot Melt Bead
Sealant Material : Polyurethane Glue



Download PAO ULPA Filter Catalogue: Click Here
