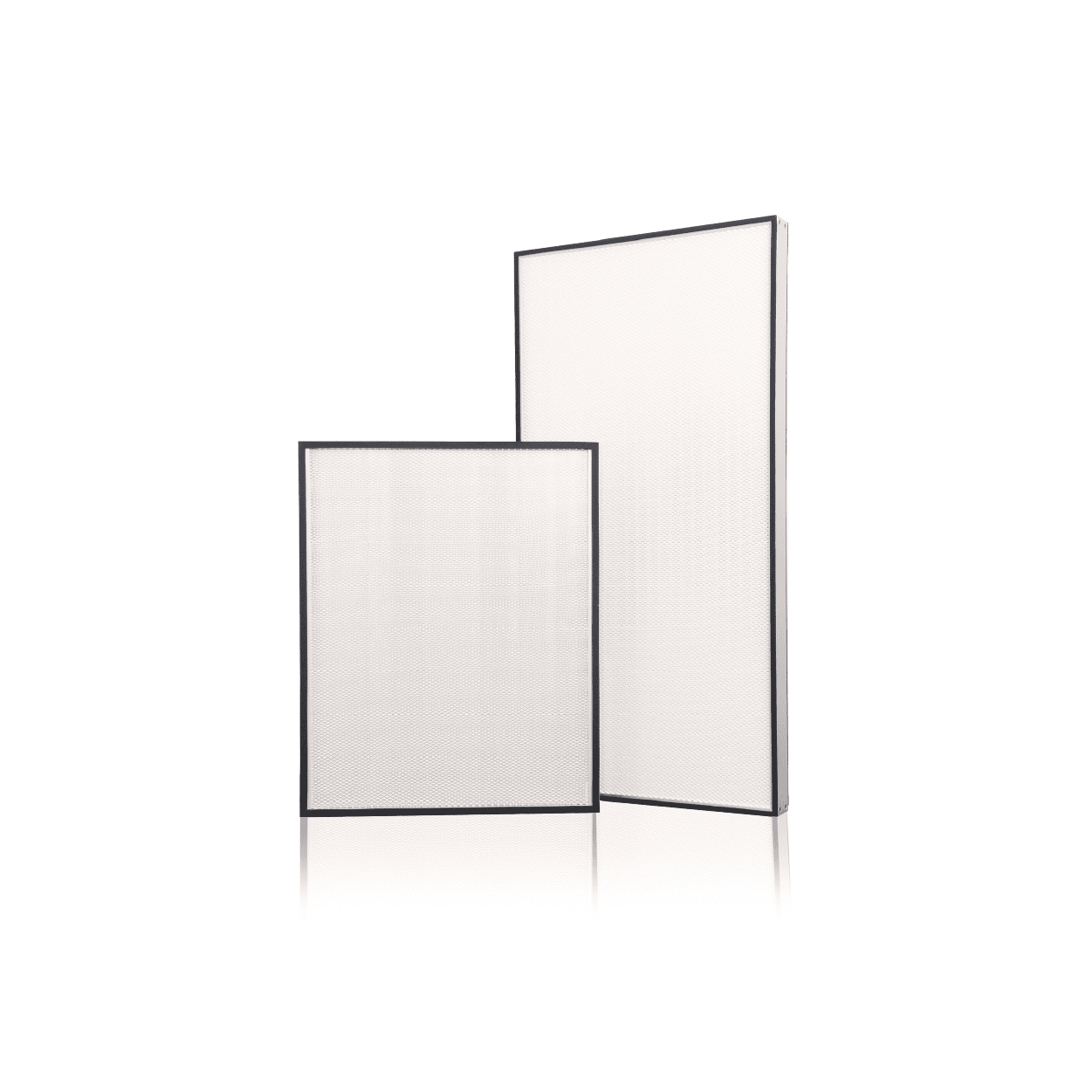

ULPA Filter M-UII

Ultra-Low Penetration Mini-Pleated Air Filter

Product Highlight

  • Non-separator design, lower operational cost
  • Wide application area, compact design, space-saving
  • Ultra thin design, space-saving
  • Efficiency: 99.97%@0.3μm(H13), 99.99%@0.3μm(H14), 99.9995%@0.3μm(U15)(EN1822)

Product Description

Product Features:

Continuous Operating Temperature : Max. 80°C
Operating Relative Humidity : ≤100 (%RH)
Media Material : Ultrafine Fiberglass
Frame Material : Anodised Aluminium
Frame Thickness : 50mm, 70mm, 90mm, 110mm
Efficiency : U15, U16 (EN1822:2009)
Structure/Arrangement : Ultra-slim and compact design
Separator Material : Hot Melt Bead
Sealant Material : Polyurethane Glue
