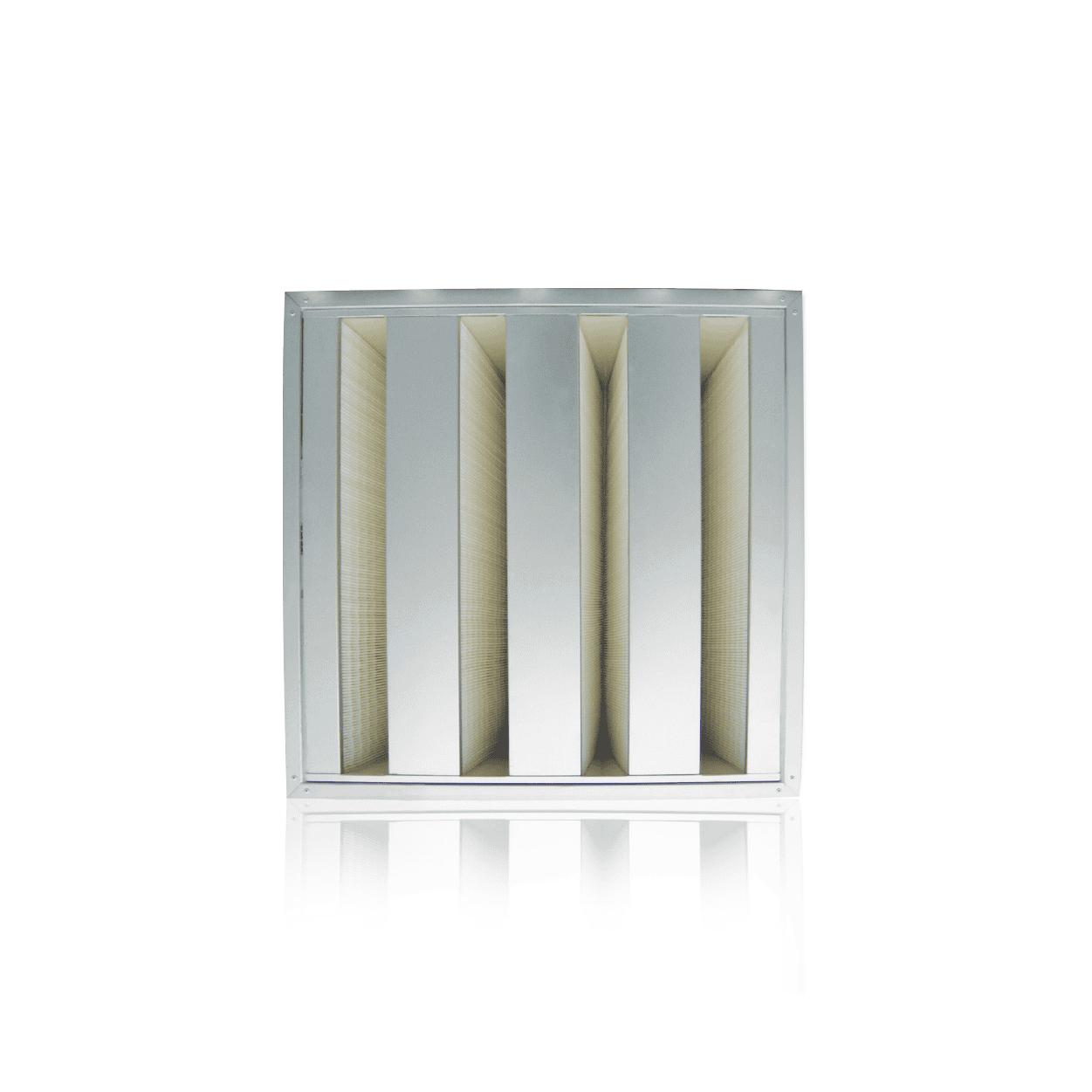

V Shape HEPA Filter

V Shape HEPA Filter M-HV

V Shape HEPA Filter (M-HV) is one of the highest air volume filter, suitable for turbulence air flow and steady air flow. Special designed hot melt glue can provide equal spacing between pleated media. This will ensure the air flow passing with the lowest resistance. Meanwhile, enhances the filtration area, reduce electricity and operation costs.



Add to quote

Description

V Shape HEPA Filter Benefits

provides a superior combination of low pressure drop and high efficiency through the use of our unique mini-pleat design.



Low cost, High Air Volume

Suitable for air-conditioning system and duct works. The rated air flow of M-HV size 610x610x292mm, can stand up to 3400 m³/h while the face area velocity is 2.5m/s



High Efficiency, Excellent Media

Galvanized iron frame, bigger filter area, ensuring the efficiency up to 99.99% @ 0.3μm (H14). Under rated air flow.



Low Cost & Resistance

More pleated media compare to box type filter. Available in 2 sizes: 610 x 610mm (24″ x 24″) and 305 x 610mm (12″ x 24″)
